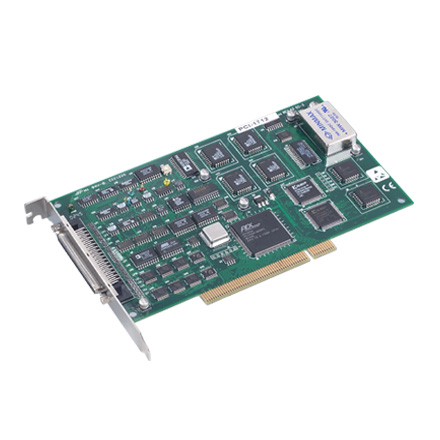

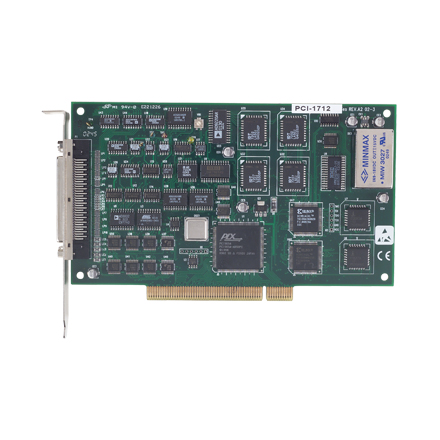

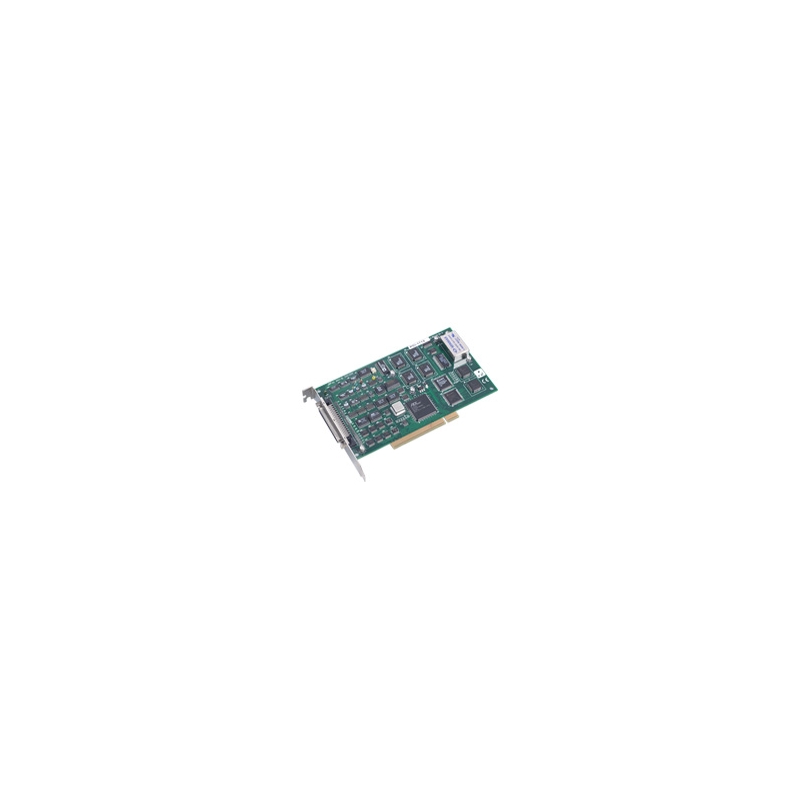

12-bit A/D converter with sample rates up to 1 MHz

16 single-ended or 8-way differential or combined inputs

PCI bus data transmission

The data acquisition trigger modes for analog input channels can be triggered using pre-trigger, post-trigger, match-triggered, and delayed triggering

Three 16-bit programmable multifunction counters/timers operating at 10 MHz

Programmable gain

Automatic channel/gain scanning

Onboard FIFO memory (AI: 1024 samples AO: 32768 samples)

Automatic Calibration (AI/AO)

PCI bus for data transfer

Simulate the pre-trigger, post-trigger, approximate trigger, and delay-triggered data acquisition modes of the input channel

Flexible triggering and clock functions
